Pioneer Exclusive M7

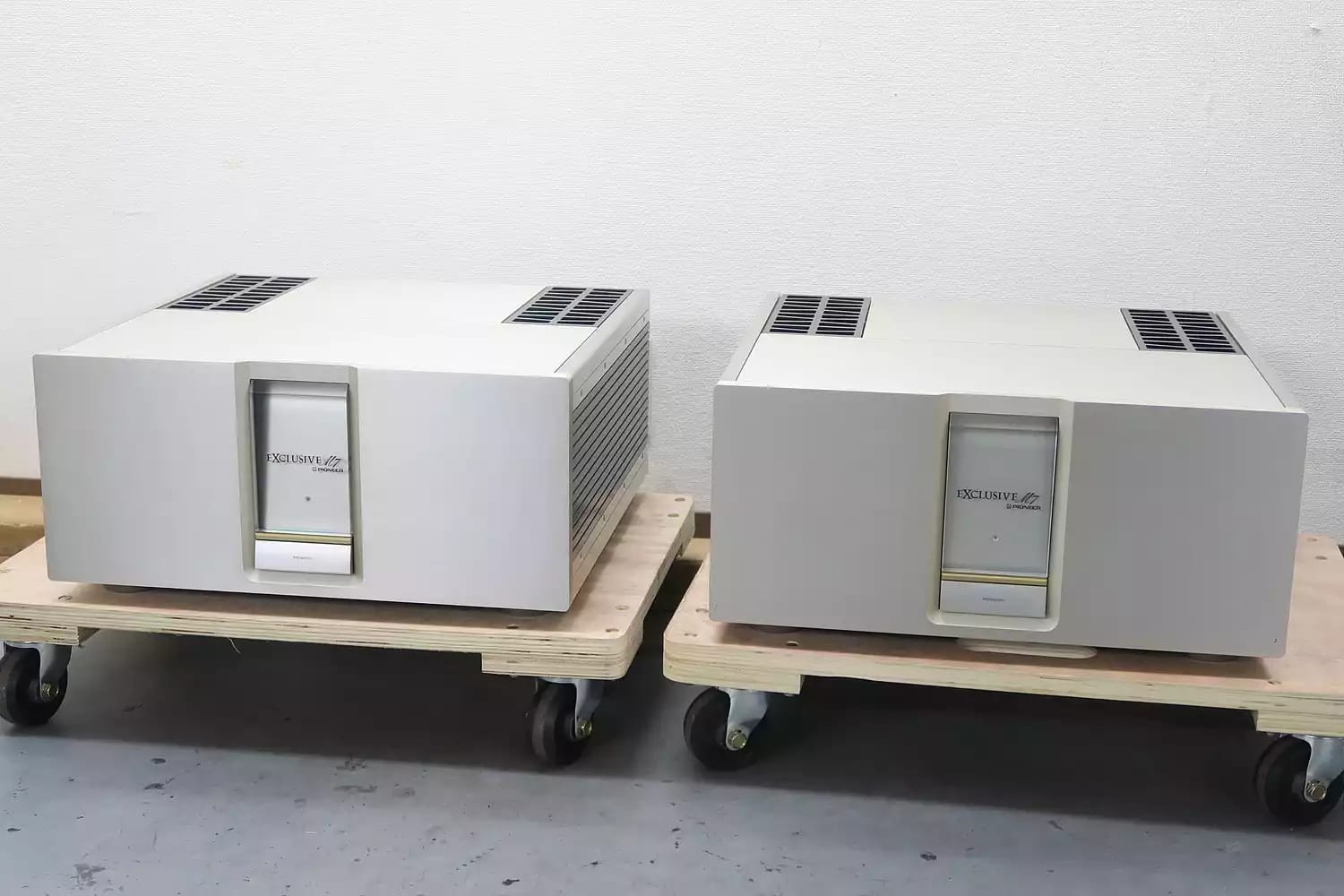

Pioneer Exclusive M7 Monoblock Pair Amplifier For Sale.



The product is the main unit (serial number pair) and instruction manual.
Operation has been confirmed.
The exterior has air bubbles in the front panel on one side.
There are other scratches and dirt due to use, but
It is in good condition considering its age.

Pioneer Exclusive M7 Product Specifications
Model A class monaural power amplifier
Rated output 480W (2Ω), 240W (4Ω), 120W (8Ω)
Output terminal Speaker:2Ω~8Ω
Frequency characteristics 5Hz~100kHz +0 -1dB
Damping factor 100(8Ω)
SN ratio 120dB (A network, short circuit)
Power supply voltage AC100V, 50Hz/60Hz
Power consumption 440W (Electrical Appliance and Material Control Law)
External dimensions Width 460mm x Height 220mm x Depth 441mm
Weight 47.0kg

Pioneer Exclusive M7 Specifications, Review User Manual :
