Amplifiers

LINN KLIMAX 500 SOLO

$3,400

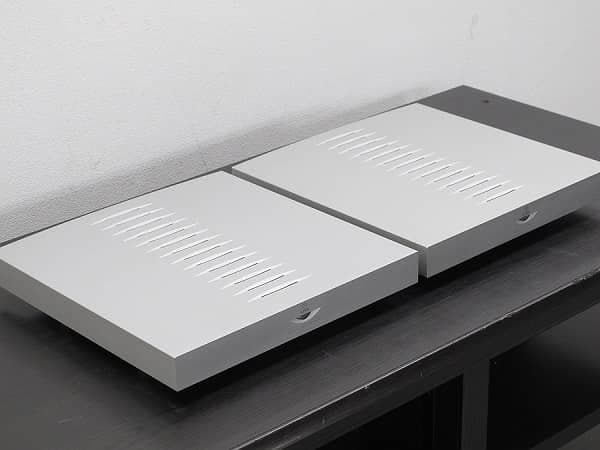

Used Linn Klimax 500 Solo monoblock power amplifier.

Monaural Pair, Mint Conditions Solid-state class-AB monoblock power amplifier with switch-mode power supply.



Inputs: balanced (XLR), pin 2 hot; single-ended (RCA).

Signal-sensing turn-on threshold: >150µV.

Output connectors: Neutrik Speakon 4 standard, binding posts optional.

Options: wall-mount system, active crossover system, binding-post output terminals.

Output power: 500W RMS into 4 ohms (24dBW), 290W RMS into 8 ohms (24.6dBW).

Harmonic distortion: <0.02%.

Peak output voltage: 70V.

Frequency response: 2Hz-60kHz, -3dB.

Input impedance: unbalanced 7k ohms, balanced 7k ohms.

Voltage gain: 28.6dB unbalanced, 22.6dB balanced.

Input level at clipping: 1.67V RMS unbalanced, 3.34V RMS balanced.

Mains input range: 90-126VAC, 200-253VAC at 50/60Hz.



Maximum input power: 900W. Typical operating input power. 39W. Standby power: 3W.

Dimensions: 14″ W by 2½” H by 14″ D. Weight: 20 lbs (9kg).



Please feel free to contact us if you have any questions about this linnn klimax 500 solo power ampifier.
