Description

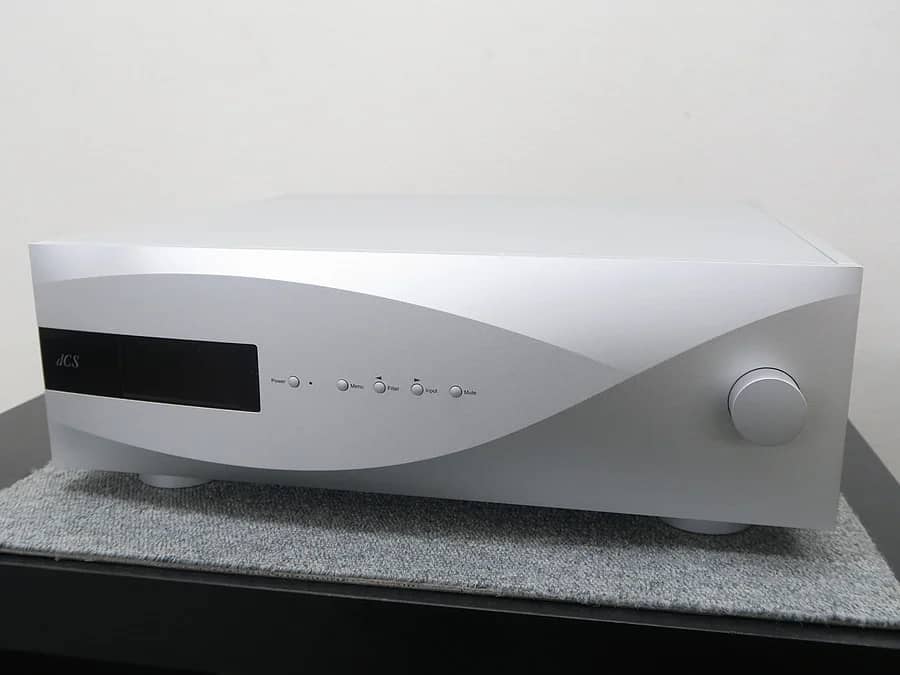

DCS Vivaldi For Sale Apex D/A Processor.
The product includes the main unit, remote control, power cable, USB cable,
CD-ROM, instruction manual, and original box.
The version will be 2.0.
Operation has been confirmed.
The exterior has some scratches due to use, but
There are no particularly noticeable scratches or dirt.
Dimensions: 6″ (151mm) H × 17.5″ (444mm) W × 17.2″ (435mm) D. Weight: 35.65lb (16.2kg), DAC.
Finish: Silver.
More Details, Specifications, Manual PDF :
https://www.stereophile.com/content/dcs-vivaldi-apex-da-processor
More Audio Gear :
https://www.dealhomeaudio.com/product-category/others-audio-gear/
DCS Vivaldi For Sale DAC Apex D/A Processor Review, Demo, Test :
World’s BEST DACs: dCS Rossini Apex & Vivaldi
More Specs :
Conversion: dCS proprietary Ring DAC topology
Analog outputs: One pair balanced outputs on XLR jacks; one pair unbalanced outputs on RCA jacks
Digital inputs: USB 2.0 interface on B-type connector, accepts 24-bit/44.1–384kS/s PCM, DSD64 & DSD128 in DoP format; 4x AES/EBU inputs on 3-pin female XLR connectors, accepts up to 32-bit/192kS/s PCM & DSD64 in DoP format; 2x dual AES pairs, accepts 24-bit/88.2–384kS/s PCM, DSD64 & DSD128 in DoP format; 2x SPDIF on RCA phono connectors, accepts 24-bit/32–192kS/s PCM & DSD64 in DoP format; 1x SPDIF on BNC connector, accepts 24-bit/32–192kS/s PCM & DSD64 in DoP format; 1x SPDIF on TosLink connector, accepts 24-bit/32–96kS/s PCM; 1x SDIF-2 interface on 2x BNC connectors, accepts 24-bit/32–96kS/s PCM or SDIF-2 DSD (auto selected)
Wordclock I/O: 3x Word Clock inputs on BNC connectors, accept standard Word Clock at 32, 44.1, 48, 88.2, 96, 176.4, or 192kHz (the data rate can be the same as the clock rate or an exact multiple of the clock rate); 1x Word Clock output on 1x BNC connector
Residual noise: Better than -113dB0 @ 20Hz-20kHz unweighted (6V setting)
Crosstalk: Better than -115dB0, 20-20kHz
Output levels: 0.2V, 0.6V, 2V, 6V rms for a full-scale input, set in the menu
Output impedance: 3 ohms
Maximum load: 600 ohms (10k–100k ohms is recommended)
